Plan Pricing
** Please note that a PDF File is included with a 3 Set Order**
**All plans by this designer are being updated to IRC 2015 starting on March 13, 2023. This plan may be delayed by 4 business days before shipping.
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.Specifications
| Garage Area: | 480 sq ft |
| Garage Type: | Detached |
| Garage Bays: | 1 |
| Foundation Types: | Slab |
| Exterior Walls: | 2x6 |
| House Width: | 20' |
| House Depth: | 24' |
| Number of Stories: | 1 |
| Max Ridge Height: | 16'4 from Front Door Floor Level |
| Primary Roof Pitch: | 0 |
| Roof Load: | 40 psf |
| Roof Framing: | Truss |
| Main Ceiling Height: | 8' |
What's Included?
-foundation plan
-main floor paln
-upper floor plans (if applicable)
-roof plan
-truss diagrams and building section
-construction details
-typical wall section
BCIN # for Ontario customers is available at an additional charge
-House plans with or without garage and / or apartment $300
-Multi-unit plans $400
-All other plans $150
-Garage plans with NO heating elements, $100 charge for BCIN
If you are purchasing a BCIN number for Ontario customers, and wish to purchase the PDF, a copy per Ontario rules must be mailed as well. There is no charge for the actual copy, but shipping on the copy must be purchased.
Modifications
1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
We are sorry, but an estimated cost build report is not available for this particular plan.
Q & A
Previous Q & A
A: Good day, Unfortunately no, we do not have another version of this plan with these requirements. However, this could be easily done via our modification services.
A: There is presently no space to have storage and to add some would change the look seeing as we would need to most probably modify the roof style. And yes, the depth can be increased no problem.
Also, can the roof be designed so that it does not use trusses? I will be building myself and prefer stick building (which would also allow for a higher interior ceiling height).
Michael
A: Hello again, sorry if I misunderstood
The roof does meet to a ridge line and there is enough space to put in a vent.
This plan could be modified for stick frame and we would be happy to provide a quote.
Please let me know if you have any other questions
A: Good day and thank you for your interest in this plan
With regards to the J-bolts, we do not show all of the spacing but there is a mention on the wall section that the bolts should be installed every 4’
The roof slope is 8/12 on all sides and the roof vents go through the slopes, there is no flat section on top
The plans are designed with 2 x6 but you can build with 2 x4 if you prefer
Please let me know if I can further assist you
Common Q & A
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
FHP Low Price Guarantee
If you find the exact same plan featured on a competitor's web site at a lower price, advertised OR special SALE price, we will beat the competitor's price by 5% of the total, not just 5% of the difference! Our guarantee extends up to 4 weeks after your purchase, so you know you can buy now with confidence.
Photographs may show modified designs.

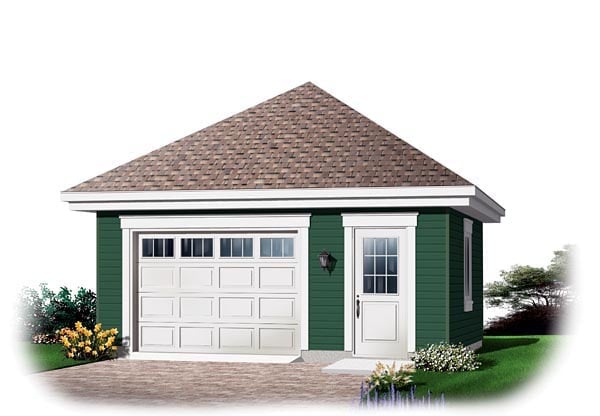

Elevation
Level One
Quick Specs
1 Car Garage20' W x 24' D
Quick Specs
1 Car Garage20' W x 24' D
